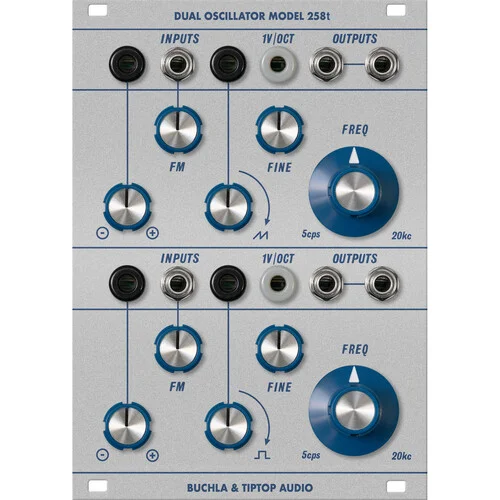

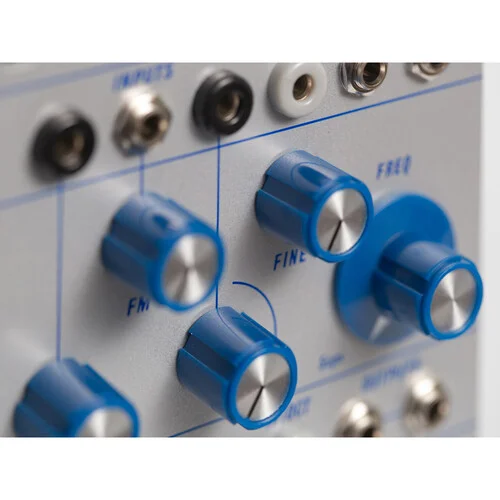

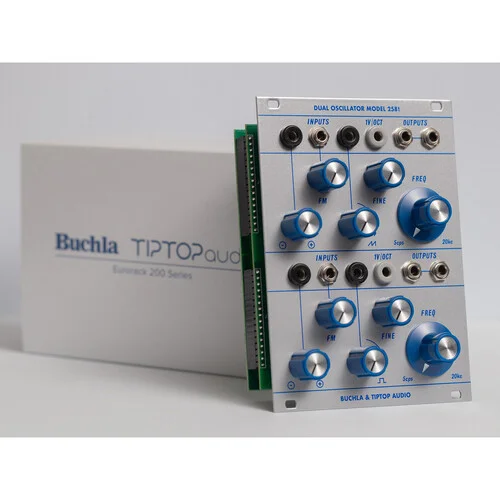

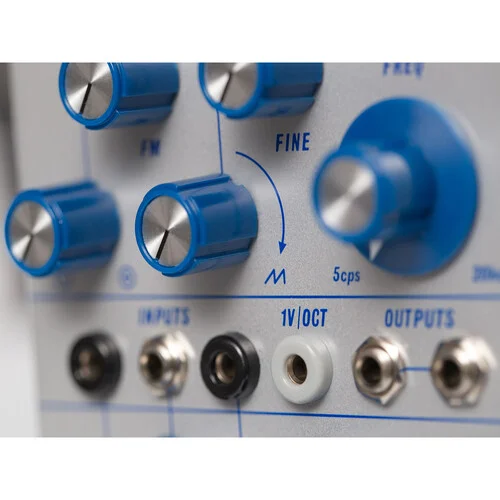

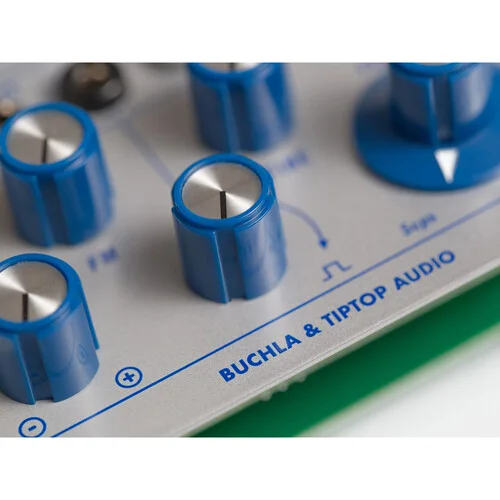

Buchla Model 258t Dual Oscillator Eurorack Module by Tiptop (18 HP)
In stock
Key Features of 258T
- Dual independent voltage-controlled oscillators
- External signal processing input
- Frequency modulation (FM) input
- 1V per octave pitch input
- Voltage-controlled waveshape modulation
- Four oscillator calibration trimmers
- Supplied with ribbon power cable
SKU: 258T
Condition: Brand New
Other Options: Opened, unused, or refurbished units may be available contact support.
$218.90
In stock
Buchla Model 258t Dual Oscillator Eurorack Module by Tiptop (18 HP) | 258T
The Tiptop Audio Buchla Model 258t is an 18 HP Eurorack dual oscillator that faithfully recreates the classic Buchla 200 series module. Developed in collaboration with Buchla, it brings iconic West Coast synthesis to modern Eurorack systems.
- Two independent oscillators with waveshaping that ranges from sine to saw on oscillator 1 and sine to square on oscillator 2.
- Voltage control over waveshape and frequency, plus frequency modulation and a 1V/oct input.
- Wide 5 Hz–20 kHz range with low sine-wave harmonic content and high stability.
- Authentic recreation with 3.5 mm Eurorack jacks; ships with a ribbon power cable.
A must-have for modular synthesists and sound designers chasing the legendary Buchla tone in a Eurorack format.
| Weight | 0.745 lbs |
|---|---|
| Dimensions | 6 × 4.7 × 3 in |
Buchla Model 258t Dual Oscillator Eurorack Module by Tiptop (18 HP) Specs
| Key Specs | Sound Generation | Analog |
| Audio I/O | 4x 1/8″ / 3.5 mm Output | |
| MIDI I/O | No | |
| CV/Gate I/O | 8x 1/8″ / 3.5 mm CV Input | |
| Patch Points | 8x 1/8″ / 3.5 mm Input 4x 1/8″ / 3.5 mm Output |
|
| Eurorack Current Consumption | 70 mA on +12 V Rail 40 mA on -12 V Rail |
|
| Horizontal Pitch | 18 HP | |
| General | Item Type | Eurorack Module |
| Kit Components | Sound Generation | Analog |
| Expression Controls | No | |
| Number of Pads | No | |
| Sounds | Built-In Effects | No |
| Performance Functions | No | |
| Built-In Speaker | No | |
| Synthesis | Oscillators | 2x Variable (FM, Sawtooth, Sine, Square) |
| Mixer | No | |
| Amplifiers | No | |
| Envelopes | No | |
| Filters | No | |
| LFOs | No | |
| Sequencing & Recording | Sequencer | No |
| Arpeggiator | No | |
| Media/Memory Card Slot | No | |
| Connectivity | Audio I/O | 4x 1/8″ / 3.5 mm Output |
| MIDI I/O | No | |
| CV/Gate I/O | 8x 1/8″ / 3.5 mm CV Input | |
| Control Voltage Level | CV In: +12 V (1 V/Octave) | |
| Patch Points | 8x 1/8″ / 3.5 mm Input 4x 1/8″ / 3.5 mm Output |
|
| Sync I/O | No | |
| Audio Performance | Frequency Response | 5 Hz to 20 kHz |
| Power | Power Requirements | Eurorack Power |
| Eurorack Current Consumption | 70 mA on +12 V Rail 40 mA on -12 V Rail |
|
| Physical | Horizontal Pitch | 18 HP |
| Included Accessories | No | |
| Packaging Info | Package Weight | 0.745 lb |
| Box Dimensions (LxWxH) | 6 x 4.7 x 3″ |
