Pro Co Sound AVP-1 Black Wall Plate Interface for Audio and Video
In stock
SKU: AVP1BLK
Condition: Brand New
Other Options: Opened, unused, or refurbished units may be available contact support.
$274.34
In stock
Pro Co Sound AVP-1 Black Wall Plate Interface for Audio and Video | AVP1BLK

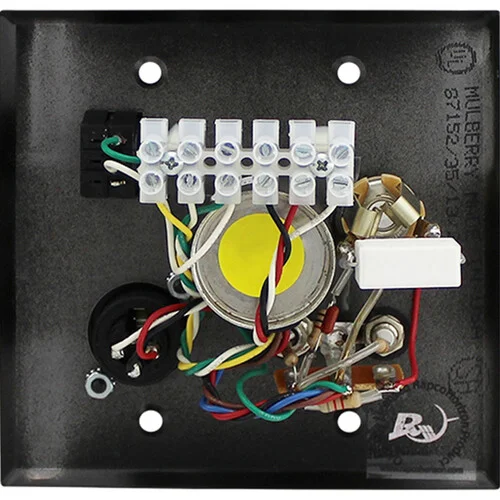

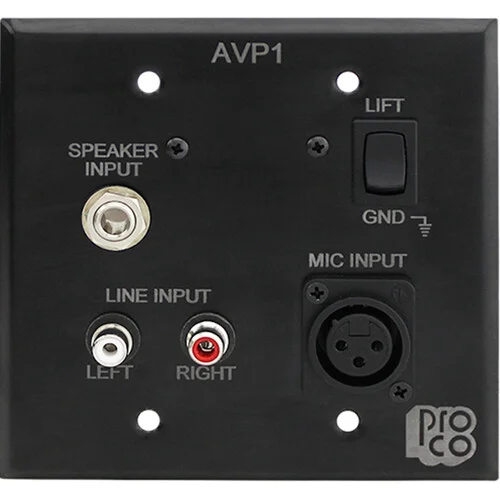

The Pro Co Sound AVP-1 Black Wall Plate Interface for Audio and Video is a wall-mounted impedance-matching unit designed to connect projectors, tape recorders, and other AV playback devices to the microphone inputs of a house sound system.
- Inputs: Dedicated microphone input plus line inputs for connecting projectors, recorders, and other playback sources
- Output: Transformer-balanced, low-impedance output on a barrier strip for easy installation
- Ground control: Hum-canceling ground loop switch on the front panel to help eliminate buzz from ground loops
- Build: Dual-gang wall plate design in a black anodized aluminum finish
Well suited for schools, houses of worship, and conference rooms that need a permanent, wall-mounted connection point between AV playback equipment and a house PA system.
| Weight | 0.40625 lbs |
|---|---|
| Dimensions | 4.6 × 4.6 × 1.25 in |
Pro Co Sound AVP-1 Black Wall Plate Interface for Audio and Video Specs
| General | Input Impedance | >130 kOhm @1kHz (line in L/R jacks, mono source) 4.0 kOhm (line in L/R jacks, stereo source, resistively mixed) 16 Ohms (PROJ IN jack) |
| Output Impedance | <200 ohms @1kHz | |
| Frequency Response | 20 Hz – 20 kHz, +/-.5dB @-15dBv output -3dB @85 kHz 6dB/octave attenuation above 8 kHz (PROJ IN jack) |
|
| Input Connectors | 2 x RCA Phono Line In 1 x 3-pin XLR Female MIC In 1 x 1/4″ TS Phone PROJ IN(SPKR.) |
|
| Output Connector | Barrier Strip | |
| Weight | 6.5 oz (184.3) | |
| Dimensions | 4.6 x 4.6 x 1.25″ (115.8 x 115.8 x 31.75mm) |
