Pro Co Sound AVP-1V – Stainless Steel Wall Plate Audio/Video Interface with Volume Adjustment

Availability:

In stock


SKU: AVP1VSTS
Condition: Brand New
Other Options: Opened, unused, or refurbished units may be available contact support.

$285.75

In stock

Pro Co Sound AVP-1V – Stainless Steel Wall Plate Audio/Video Interface with Volume Adjustment | AVP1VSTS

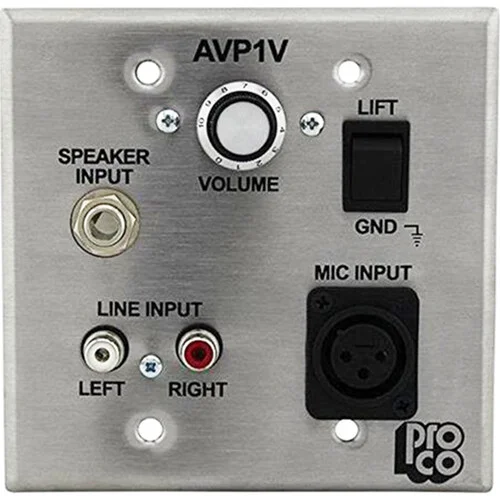

One plate. Full control. The Pro Co Sound AVP-1V makes wall-mounted AV jacks actually useful.

This stainless steel wall plate integrates both audio and video connectivity with a dedicated volume adjustment knob, so you don’t have to reach for a separate receiver just to turn things down. It’s a clean, professional solution for conference rooms, classrooms, or any setup where you want inputs accessible without a tangle of cables hanging from the gear rack.

  • Those stainless steel construction resists corrosion and fingerprints, keeping the plate looking sharp even after years of daily use in high-traffic spaces.
  • The volume adjustment is right on the wall plate itself, so you can tweak speaker or headphone output without hunting for a remote or walking back to the amplifier.
  • Installing it is straightforward ? it fits a standard single-gang box, making it a direct replacement for a blank wall plate or a custom upgrade.
  • It handles both audio and video signal routing through a single interface, simplifying the cabling behind your wall-mounted display or projector.
SKU: AVP1VSTS Category:
Weight 0.6 lbs
Dimensions 6.2 × 4.9 × 2.6 in

Pro Co Sound AVP-1V – Stainless Steel Wall Plate Audio/Video Interface with Volume Adjustment Specs

General Specifications Input Impedance >130 kOhm @1kHz (line in L/R jacks, mono source)
4.0 kOhm (line in L/R jacks, stereo source, resistively mixed)
16 Ohms (PROJ IN jack)
Output Impedance <200 ohms @1kHz
Frequency Response 20 Hz – 20 kHz, +/-.5dB @-15dBv output
-3dB @85 kHz
6dB/octave attenuation above 8 kHz (PROJ IN jack)
Input Connectors 2 x RCA Phono Line In
1 x 3-pin XLR Female Mic In
1 x 1/4″ TS Phone PROJ IN(SPKR.)
Output Connector Barrier Strip
Weight 6.5 oz (184.3)
Dimensions 4.6 x 4.6 x 1.25″ (115.8 x 115.8 x 31.75mm)
Packaging Info Package Weight 0.6 lb
Box Dimensions (LxWxH) 6.2 x 4.9 x 2.6″
