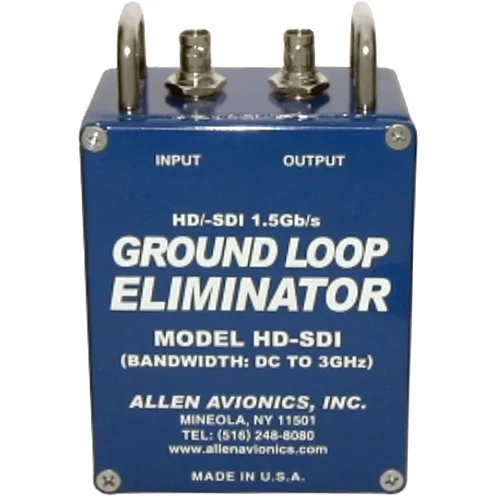

Avionics HD-SDI Video Hum Eliminator by Allen
In stock
SKU: HD-SDI
Condition: Brand New
Other Options: Opened, unused, or refurbished units may be available contact support.
$255.30
In stock
Avionics HD-SDI Video Hum Eliminator by Allen | HD-SDI
The Allen Avionics HD-SDI Video Hum Eliminator is designed to remove ground-loop hum and related electrical noise from HD-SDI video signal lines, which can occur when connected equipment is grounded at different electrical potentials. Installing it in the signal path helps clean up video feeds affected by this kind of interference, making it a useful troubleshooting and signal-integrity tool for broadcast, production, and AV installation setups running HD-SDI cabling between devices.
- Brand: Allen Avionics
- Type: HD-SDI video hum eliminator
- Function: removes ground-loop hum/noise from HD-SDI signal lines
- Best for: cleaning up HD-SDI video feeds affected by ground-loop interference
| Weight | 2 lbs |
|---|---|
| Dimensions | 6.7 × 4.3 × 2.7 in |
Avionics HD-SDI Video Hum Eliminator by Allen Specs
| General | Input | HD-SDI video: SMPTE-259M and 292M, @ 75 ohms, on a BNC connector |
| Output | HD-SDI video: SMPTE-259M and 292M, @ 75 ohms, on a BNC connector | |
| Bandwidth | 3 GHz | |
| Hum Rejection | 60 dB ground loop isolation | |
| Return Loss | 15 dB | |
| Dimensions | 3.69 x 2.06 x 4.69″ 9.37 x 5.23 x 11.91cm |
|
| Weight | 3.5 lbs 1.59 kg |
|
| Packaging Info | Package Weight | 2 lb |
| Box Dimensions (LxWxH) | 6.7 x 4.3 x 2.7″ |
