| Lens Mount |
Canon RF |
| Sensor Resolution |
Effective: 24.2 Megapixel (6000 x 4000) |
| Image Sensor |
22.3 x 14.9 mm (APS-C) CMOS |
| Image Stabilization |
No |
| ISO/Gain Sensitivity |
Native: 100 to 32,000 (100 to 51,200 Extended) |
| Internal Recording |
XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [100 to 250 Mb/s] 1920 x 1080 at 3/6/12/23.98/25/29.97/50/59.94/100/120 fps |
| Video Output |
HDMI 1920 x 1080 |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC |
| Video I/O |
1x Micro-HDMI Output |
| Audio I/O |
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input |
| Power I/O |
1x USB-C Input |
| Other I/O |
1x Canon E3 (2.5 mm Sub-Mini) Remote Input 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input) |
| Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2 Control |
| Display Type |
Articulating Touchscreen LCD |
| Battery |

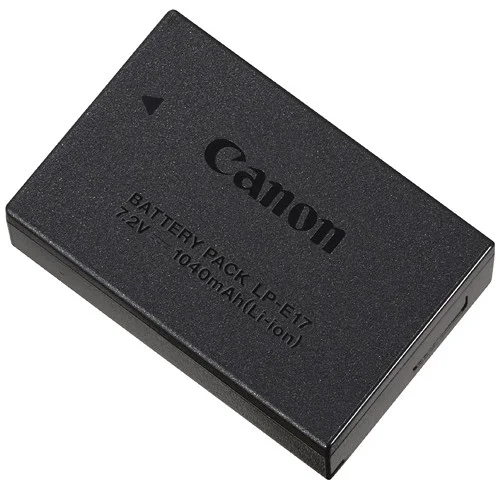

1x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh (Included) |
| Lens Mount |
Canon RF |
| Sensor Resolution |
Effective: 24.2 Megapixel (6000 x 4000) |
| Image Sensor |
22.3 x 14.9 mm (APS-C) CMOS |
| Sensor Crop (35mm Equivalent) |
Crop Factor: 1.6x *Additional Crop Occurs in Select Video Modes |
| Image Stabilization |
No |
| Built-In ND Filter |
No |
| Capture Type |
Stills & Video |
| Shutter Type |
Electronic Rolling Shutter? |
| Shutter Speed |
Electronic Shutter 1/8000 to 30 Seconds Electronic Front Curtain Shutter 1/4000 to 30 Seconds |
| Bulb/Time Mode |
Bulb & Time Mode |
| ISO/Gain Sensitivity |
Native: 100 to 32,000 (100 to 51,200 Extended) |
| Metering Method |
Center-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes |
Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Exposure Compensation |
-3 to +3 EV (1/3 EV Steps) |
| Metering Range |
-5 to 20 EV |
| White Balance |
2500 to 10,000K Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Manual, Shade, Tungsten |
| Continuous Shooting |
Up to 15 fps at Maximum Resolution for up to 36 Frames (Raw) / 95 Frames (JPEG) |
| Interval Recording |
Yes |
| Self-Timer |
2/10-Second Delay |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
| Image File Format |
C-RAW, HEIF, JPEG, Raw |
| Internal Recording |
XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [100 to 250 Mb/s] 1920 x 1080 at 3/6/12/23.98/25/29.97/50/59.94/100/120 fps |
| Video Output |
HDMI 1920 x 1080 |
| Fast-/Slow-Motion Support |
Yes |
| Gamma Curve |
Canon Log 3, HDR-HLG, HDR-PQ, Rec709 |
| Recording Limit |
2-Hour Maximum in 4K 1-Hour Maximum in 4K HFR |
| IP Streaming |
No |
| Built-In Microphone |
Stereo |
| Audio Recording |
2-Channel 16-Bit 48 kHz AAC Audio |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC |
| Video I/O |
1x Micro-HDMI Output |
| Audio I/O |
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input |
| Power I/O |
1x USB-C Input |
| Other I/O |
1x Canon E3 (2.5 mm Sub-Mini) Remote Input 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input) |
| Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2 Control |
| Mobile App Compatible |
Yes: Android & iOS App Name: Canon Camera Connect Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) |
GPS *Via Connected Smartphone |
| Display Size |
3″ |
| Resolution |
1,040,000 Dot |
| Display Type |
Articulating Touchscreen LCD |
| Type |
No Viewfinder Support |
| Focus Type |
Auto and Manual Focus |
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points |
Photo Phase Detection: 4503 Video Phase Detection: 3713 |
| Autofocus Sensitivity |
-5 to +20 EV |
| Built-In Flash/Light |
No |
| Maximum Sync Speed |
1/250 Second |
| Flash Compensation |
-3 to +3 EV (1/3 EV Steps) |
| Dedicated Flash System |
eTTL |
| External Flash Connection |
Shoe Mount |
| Battery |
1x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh (Included) |
| Shoe Mount |
1x Hot Shoe |
| Tripod Mount |
1x 1/4″-20 Female (Bottom) 1x 1/4″-20 Female (Side) |
| Operating Conditions |
32 to 104F / 0 to 40C?up to 85% Humidity |
| Dimensions (W x H x D) |
4.6 x 3.4 x 2.7″ / 116 x 85.5 x 68.8?mm |
| Weight |
11.4?oz / 323?g (Body Only) 13.1?oz / 370?g (With?Battery, Recording Media) |
| Package Weight |
2.165 lb |
| Box Dimensions (LxWxH) |
11.8 x 7.6 x 6.1″ |
